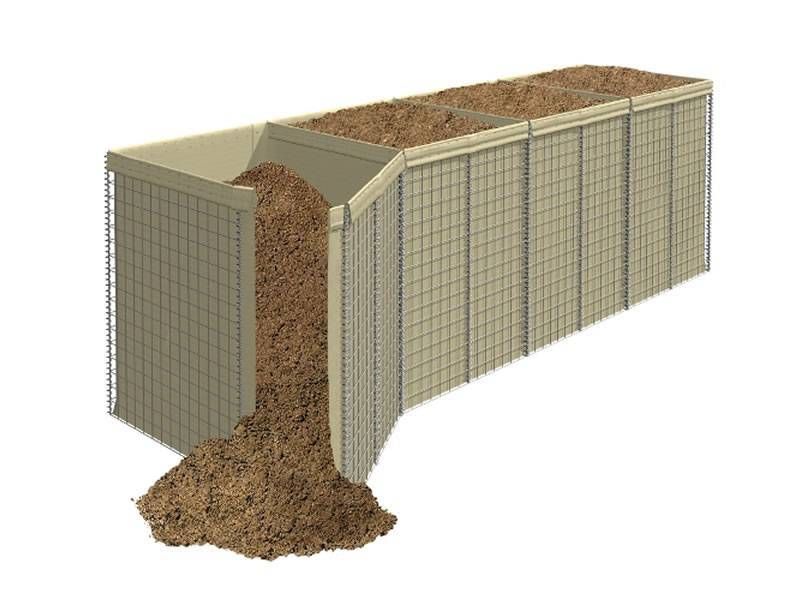

Defensive Bastion Barriers – Strong, Reliable Protection
Defensive Bastion Barriers are a significant advancement in field fortifications since World War II. They offer effective and cost-efficient protection for soldiers, vehicles, equipment, and facilities in military sites, peacekeeping missions, humanitarian efforts, and civilian operations.
Built for Strength and Protection
These barriers are constructed using welded gabions and non-woven polypropylene geotextile. They are designed to provide exceptional defense. Depending on your project’s requirements, these barriers can be standard or recoverable.
Defensive Barrier Details
Connection types of defensive barrier

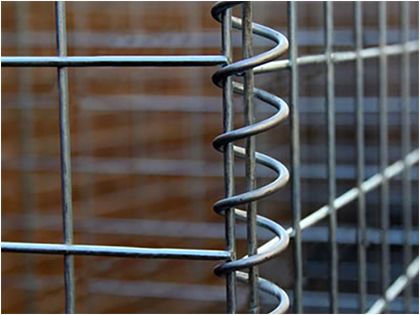

The defensive barrier is usually connected with spiral wire, which allows the gabion mesh box to be folded up for easy loading and transportation,and it can be quickly shaped filled with soil or stones and put into application when in use, The springs are all made of high strength steel wire.which can greatly improve the sturdiness of the defensive barrier.
Product Parameters
Mesh Size: 75×75 mm
Panel Sizes: 2.21m × 2.13m, 1.37m × 1.06m, 0.61m × 0.61m (custom sizes available)
Finish: Hot-dipped galvanized or Galfan coated

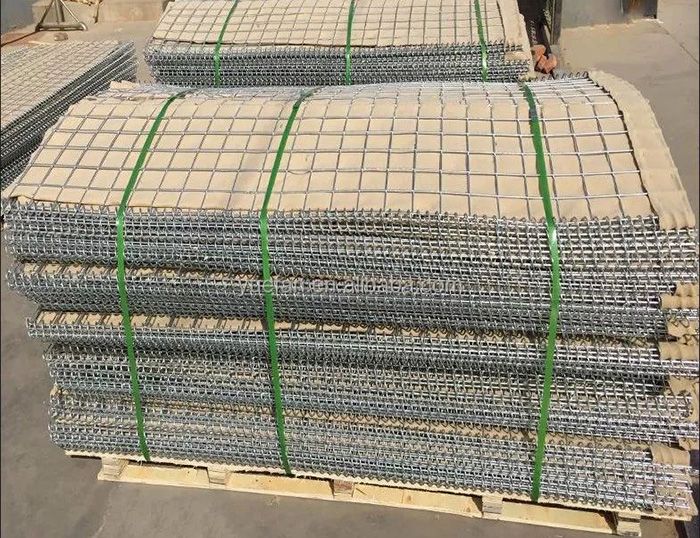

Packaging: Shrink-wrapped or palletized
Material: Hot-dipped galvanized steel or zinc-aluminum alloy steel wire
Wire Diameter: 4 mm or 5 mm
Mesh Size: 50×50 mm, 75×75 mm, 76.2×76.2 mm, 50×100 mm, 100×100 mm
Geotextile: 2 mm heavy-duty non-woven polypropylene
Geotextile Color: White, beige, military green, or custom options
|

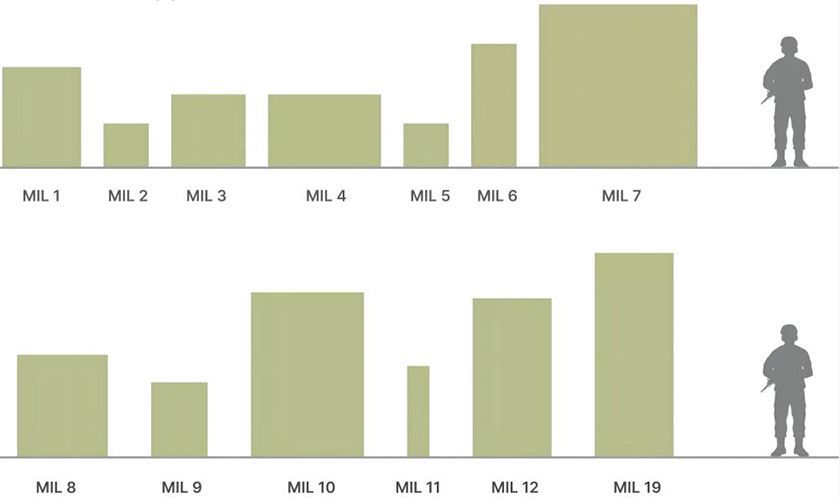

Table 1: Specification of HESCO barriers |
||||
|
Standard sizes |
Height |
Width |
Length |
Cells |
|
BJ1 |
54''(1.37m) |
42''(1.06m) |
32'9''(10m) |
4+5 cells |
|
BJ2 |
24''(0.61m) |
24''(0.61m) |
4'(1.22m) |
2 cells |
|
BJ3 |
39''(1.00m) |
39''(1.00m) |
32'9''(10m) |
5+5 cells |
|
BJ4 |
39''(1.00m) |
60''(1.52m) |
32'9''(10m) |
5+5 cells |
|
BJ5 |
24''(0.61m) |
24''(0.61m) |
10'(3.05m) |
5 cells |
|
BJ6 |
66''(1.68m) |
24''(0.61m) |
10'(3.05m) |
5 cells |
|
BJ7 |
87''(2.21m) |
84''(2.13m) |
91'(27.74m) |
4+4+5 cells |
|
BJ8 |
54''(1.37m) |
48''(1.22m) |
32'9''(9.14m) |
4+5 cells |
|
BJ9 |
39'(1.00m) |
30''(0.76m) |
30'(9.14m) |
6+6 cells |
|
BJ10 |
87''(2.21m) |
60''(1.52m) |
100'(30.5m) |
5+5+5+5 cells |
|
BJ11 |
48''(1.22m) |
12''(0.3m) |
4'(1.22m) |
4 cells |
|
BJ12 |
84''(2.13m) |
42''(1.06m) |
108'(33m) |
5+5+5+5+5+5 cells |
|
BJ19 |
108''(2.74m) |
42''(1.06m) |
10'5''(3.18m) |
3 cells |

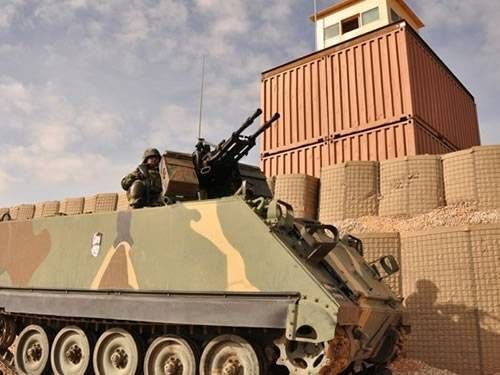

Proven Security in Challenging Environments
Once filled with sand, gravel, or soil, these barriers become solid and sturdy walls. They absorb and deflect impact, making them essential for defense.
Two feet thick – Stops rifle bullets and shell fragments
Four feet thick – Prevents damage from most car bombs
Five feet thick – Ideal for protecting against RPGs
Easy Setup and Use
Defensive Bastion Barriers are designed for quick deployment. They are easy to store, transport, and set up with minimal manpower. Compared to traditional sandbags, these barriers are much faster to install.
Collapsible & Stackable – For easy storage and transport

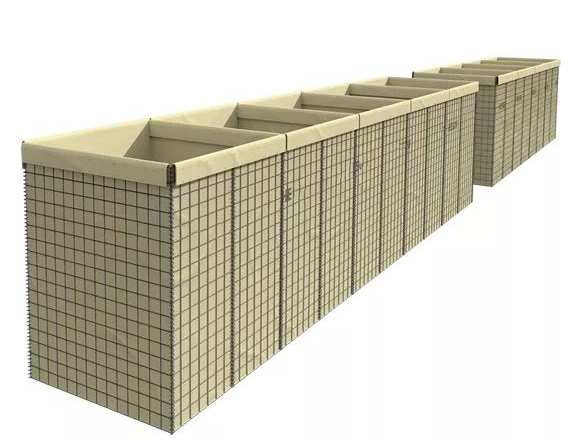

Modular Design – Use as single units or connect multiple sections
Compatible with Various Fill Materials – Sand, soil, gravel, crushed rock

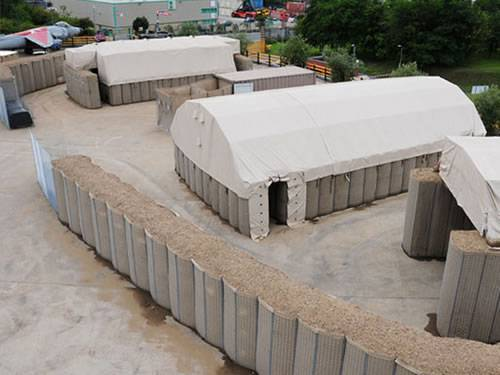

Applications
These barriers go beyond military use. They also serve as flood defenses, perimeter walls, and protective structures in high-risk areas.
Ammo compounds
Noise abatement barriers
Sentry towers and guard posts
Vehicle barriers and entry control points
Blast mitigation walls
Aircraft protection and revetments
Protection for living accommodations and bomb shelters
Reliable Defense for Any Situation
Bangjun’s Defensive Bastion Barriers have been tested in real-world conditions and proven to provide strong protection in harsh environments. Whether you're securing a military base, protecting a civilian area, or setting up flood control, these barriers offer reliable defense with quick setup and long-lasting durability.
For all your security needs, trust Bangjun’s Defensive Bastion Barriers.
